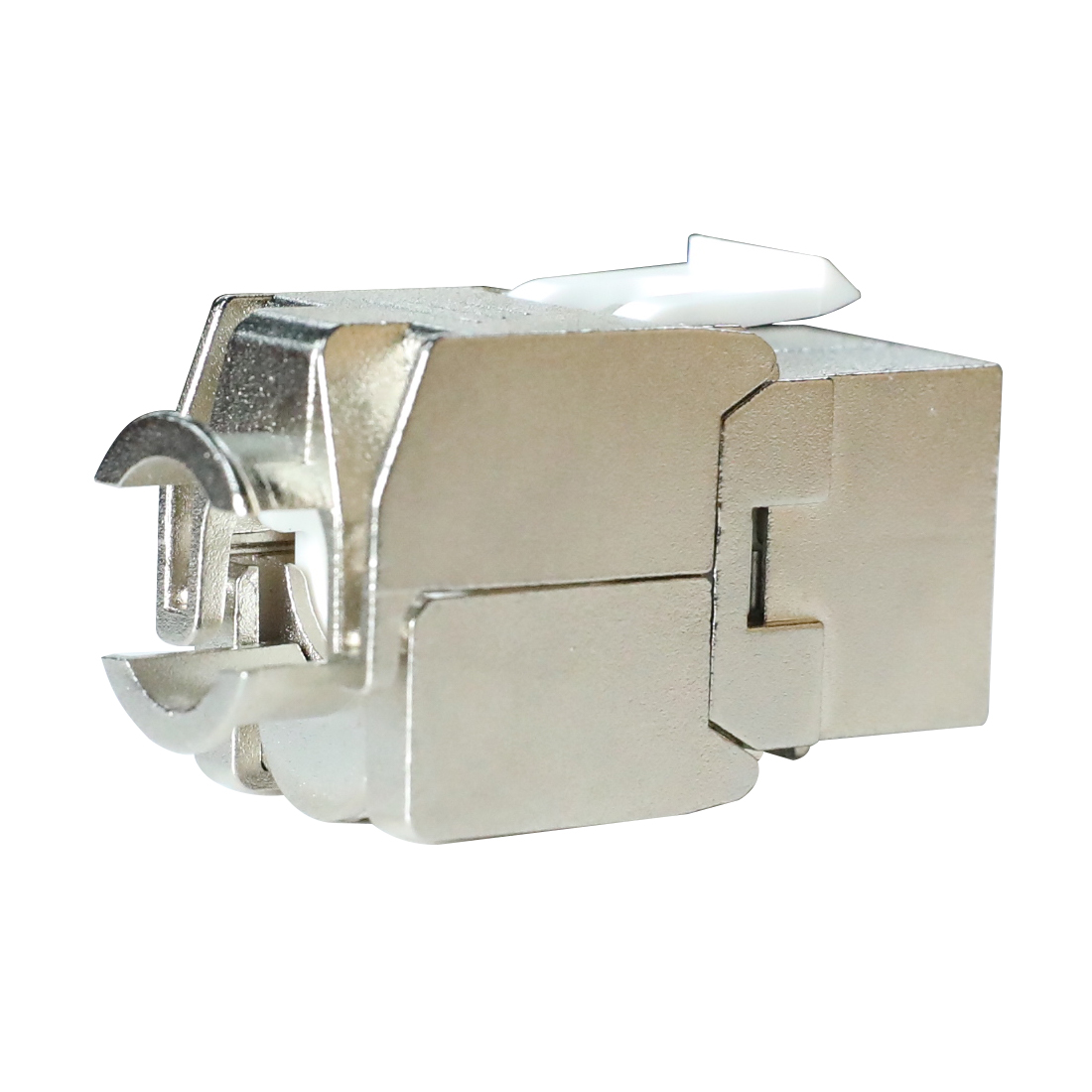

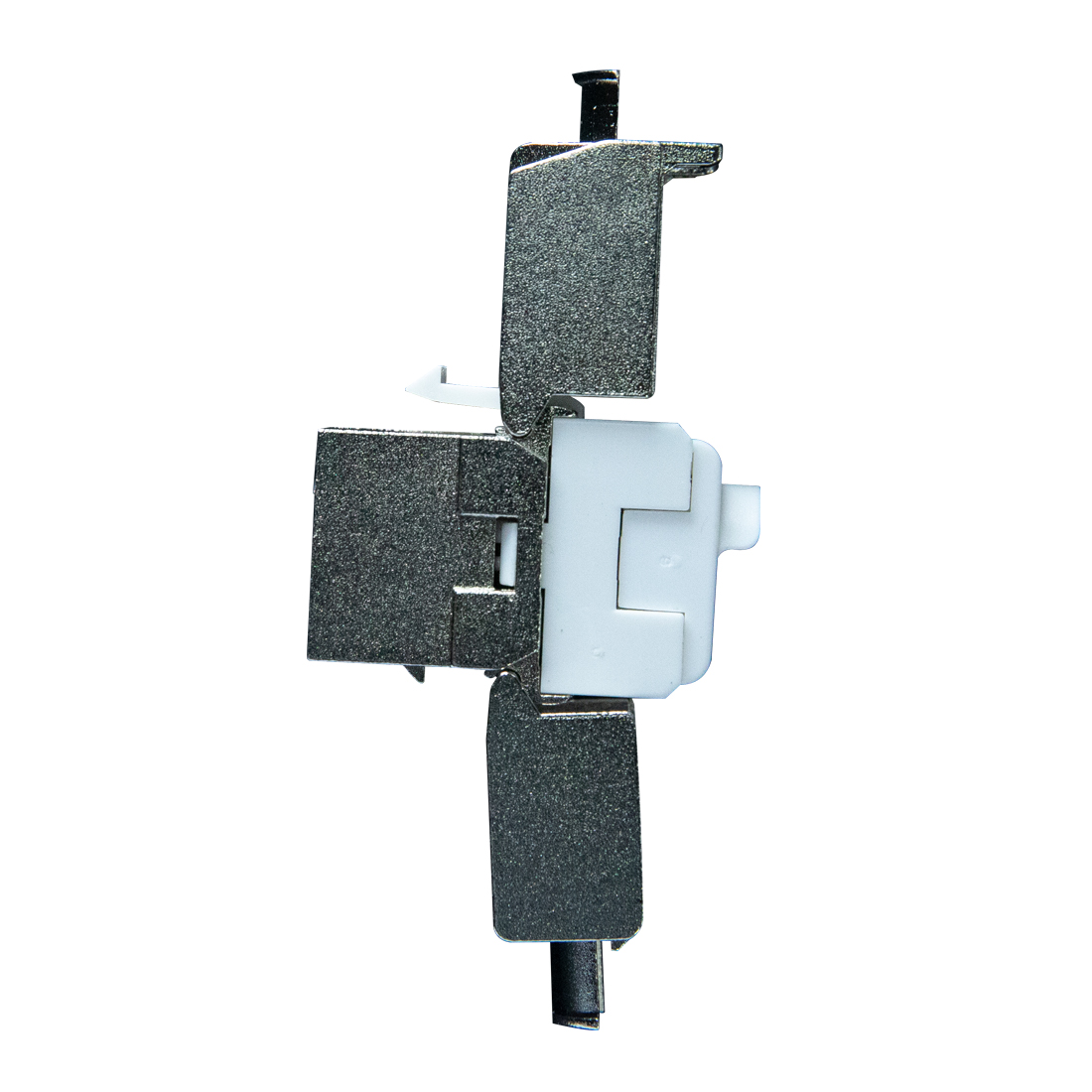

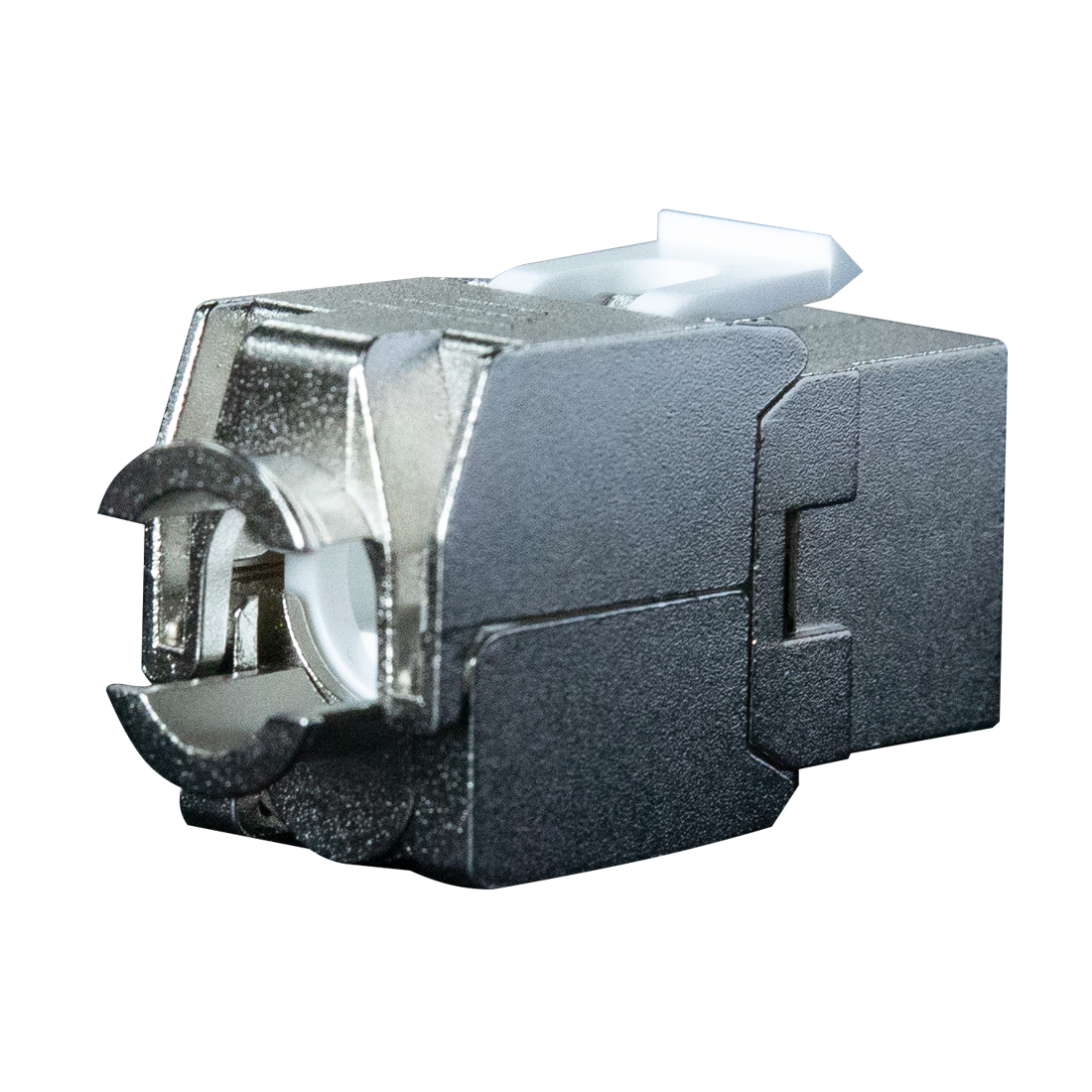

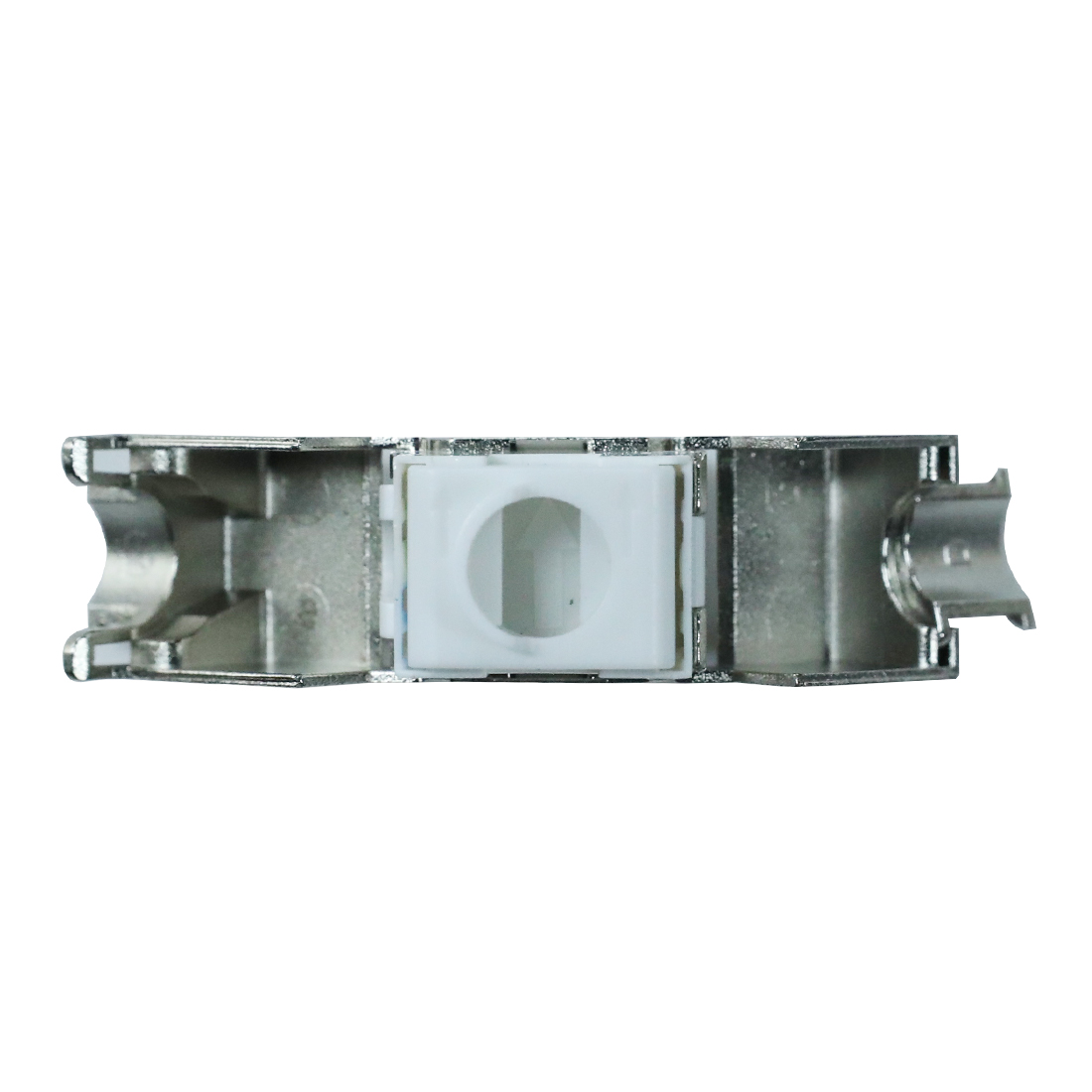

Stp FTP Modular zinc alloy Shielded Toolless Cat6a/cat6 Keystone Jack

  • Stp FTP Modular zinc alloy Shielded Toolless Cat6a/cat6 Keystone Jack
  • Stp FTP Modular zinc alloy Shielded Toolless Cat6a/cat6 Keystone Jack
  • Stp FTP Modular zinc alloy Shielded Toolless Cat6a/cat6 Keystone Jack
  • Stp FTP Modular zinc alloy Shielded Toolless Cat6a/cat6 Keystone Jack

Stp FTP Modular zinc alloy Shielded Toolless Cat6a/cat6 Keystone Jack

    Packaging: 1000PCS/26.5KG/61X41X22CM inner box 100PCS/20X19.5X11.5CM Stp FTP Modular zinc alloy Shielded Toolless Cat6a/cat6 Keystone Jack
    Supply Ability: 3000000 Piece/Pieces per Day

Product Description

Products Description

Stp FTP Modular zinc alloy Shielded Toolless Cat6a/cat6 Keystone Jack

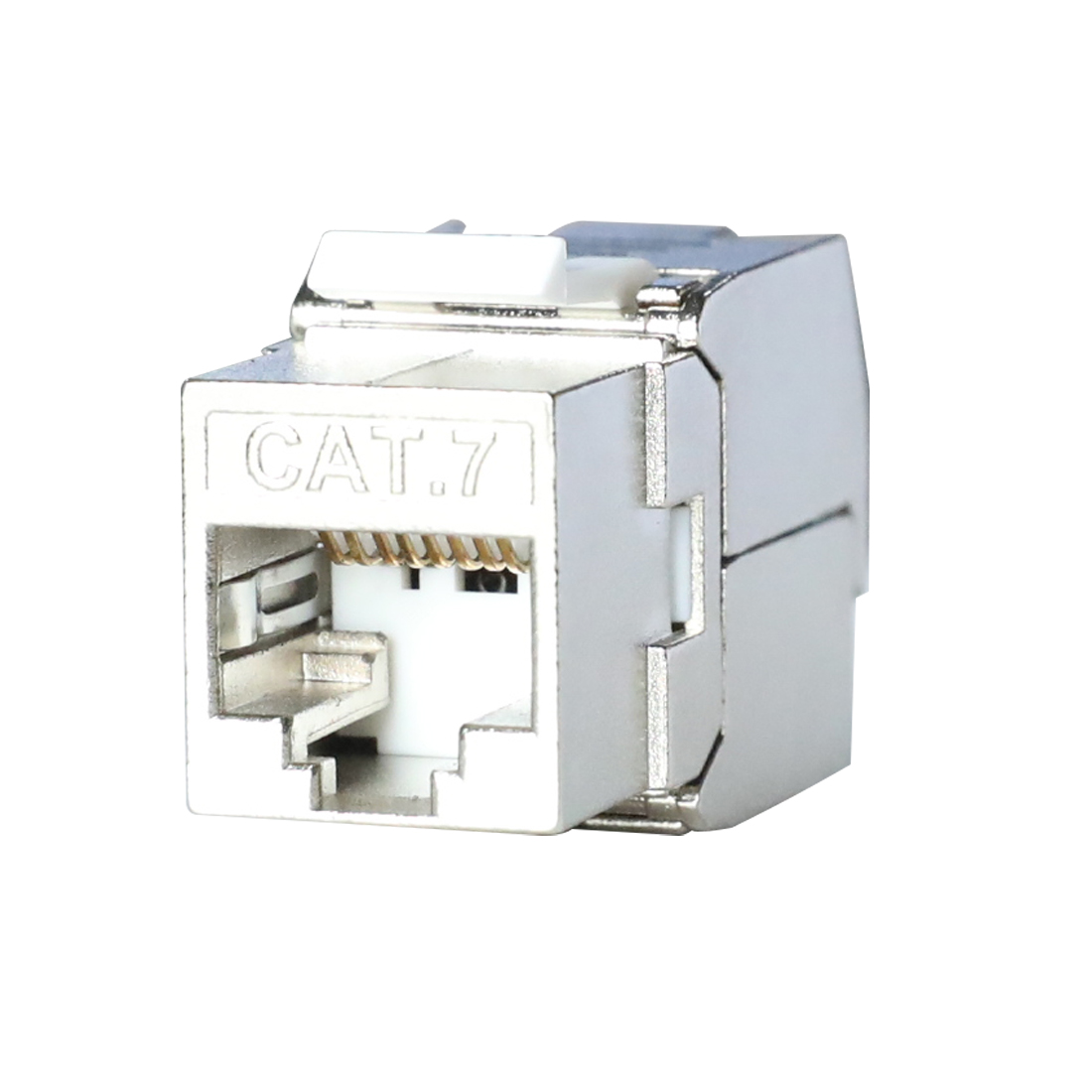

1: 180° CAT7 FTP ZINC ALLOY ( tooless) )

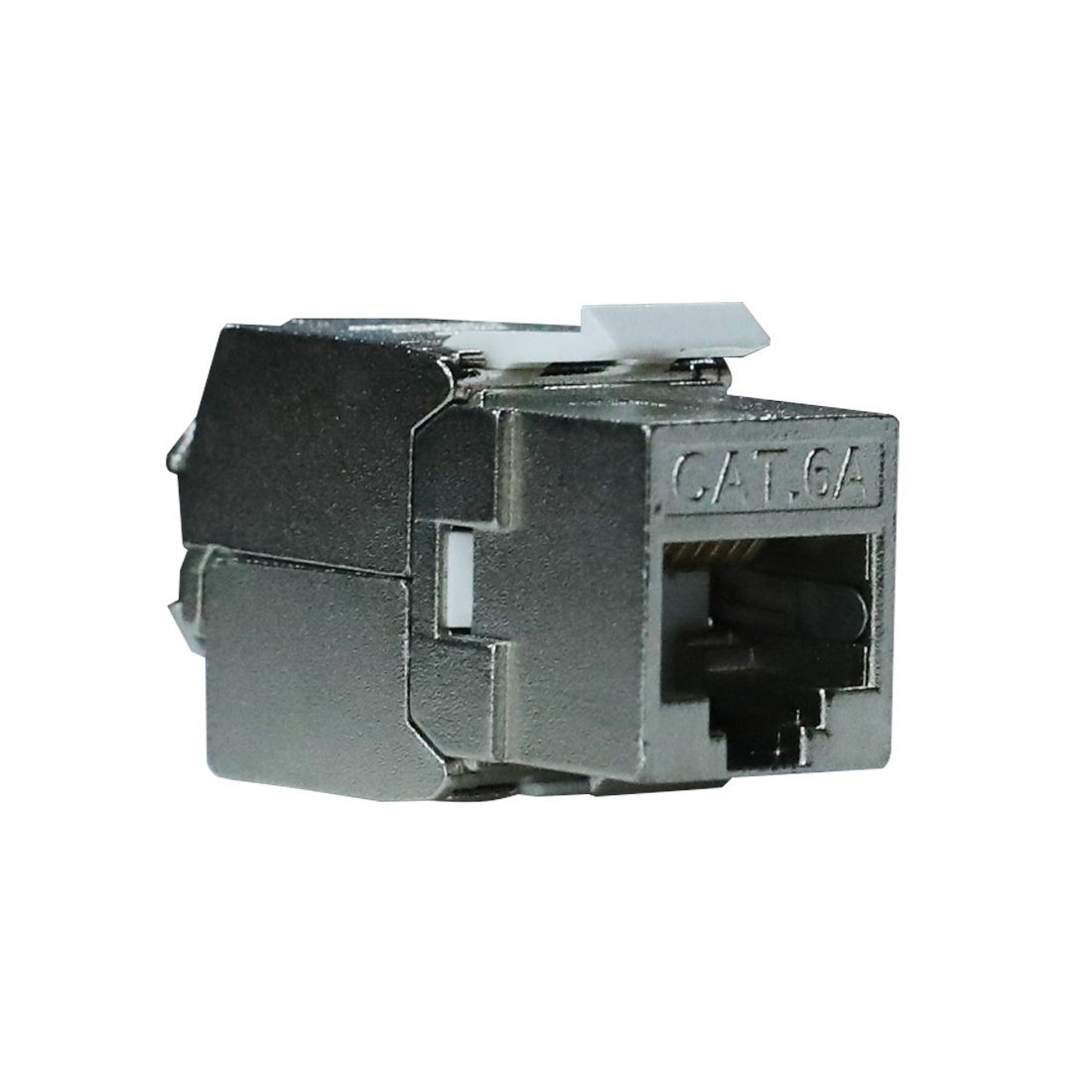

2: 180° CAT6A FTP ZINC ALLOY ( tooless) )

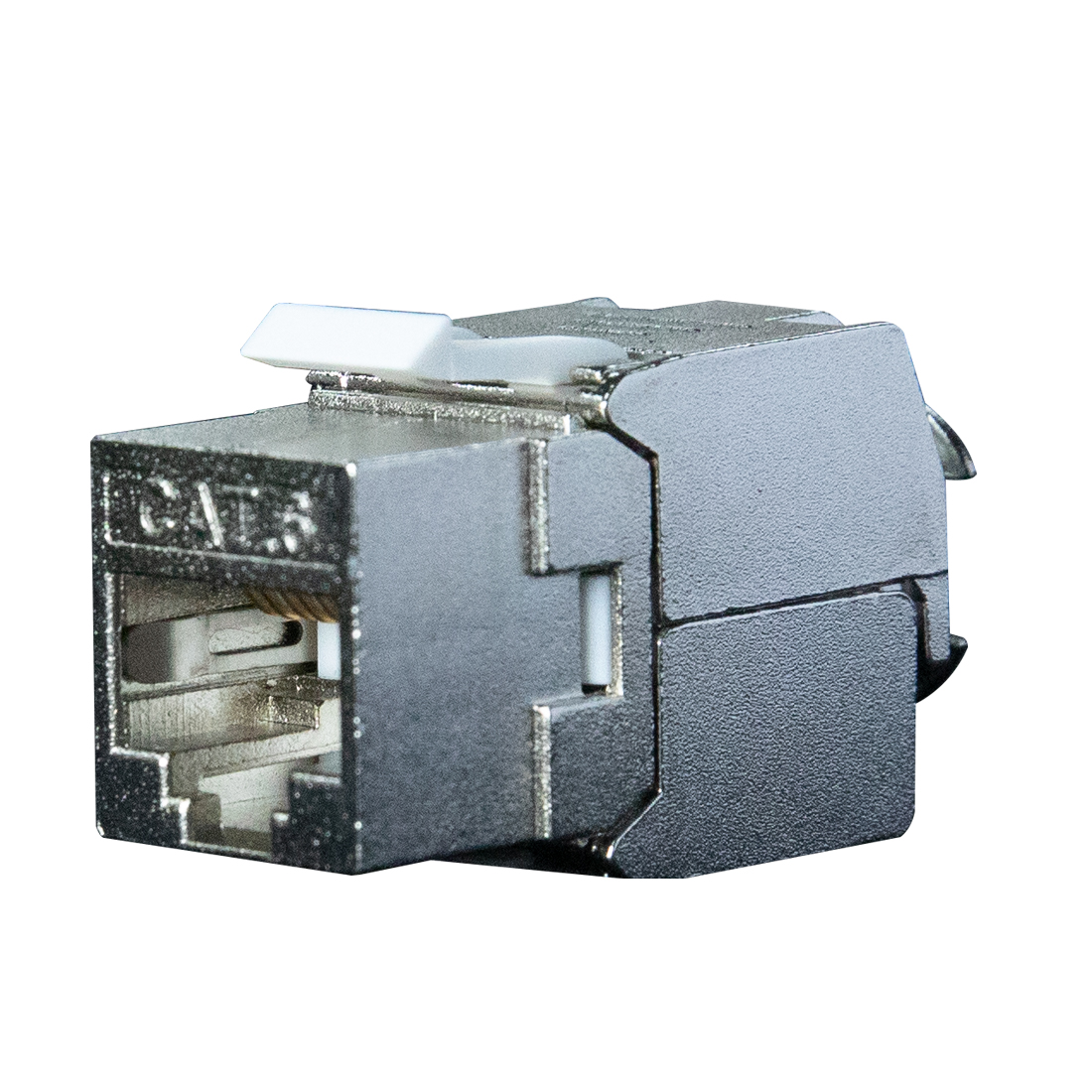

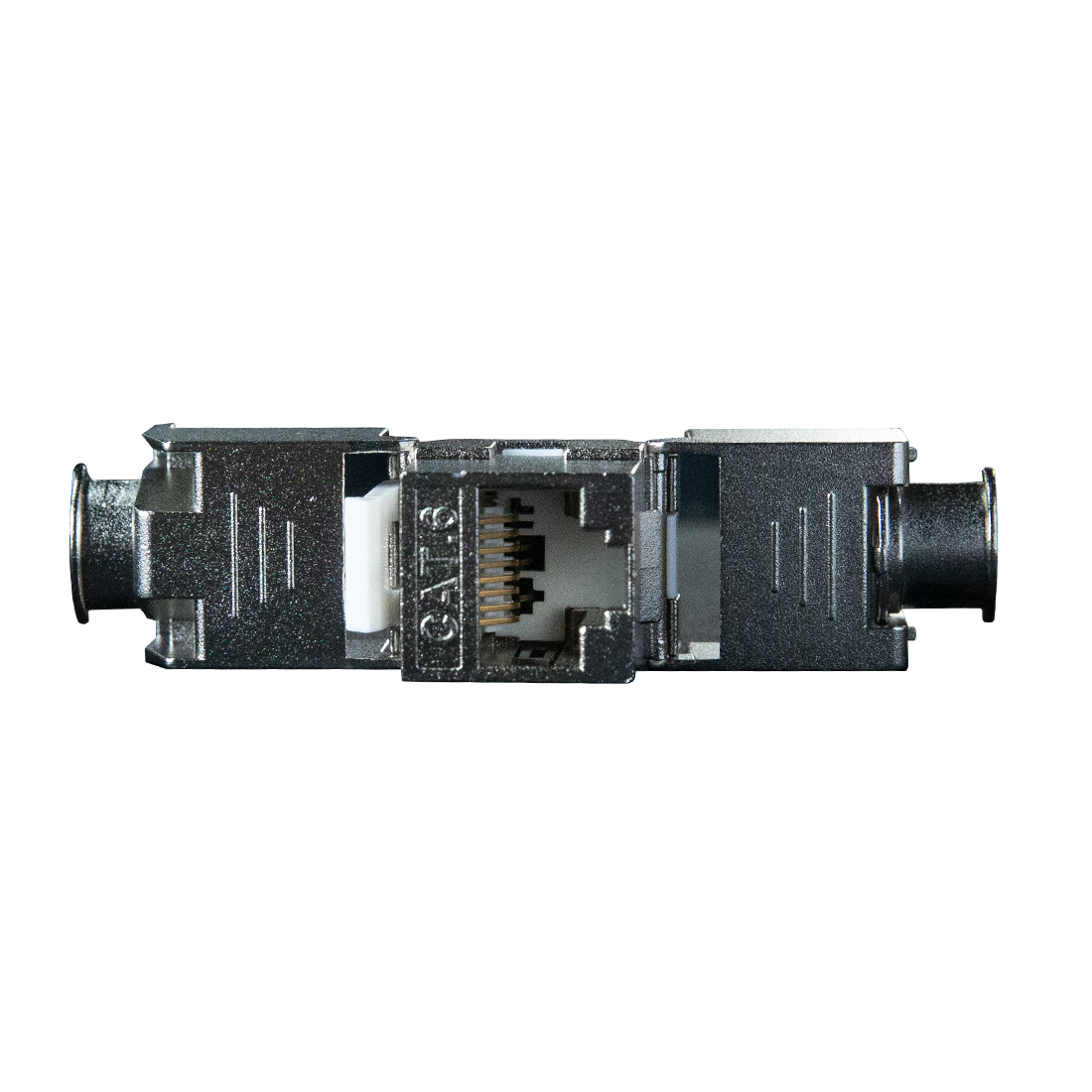

3: 180° CAT6 FTP ZINC ALLOY ( tooless) )
Model Number
SL2070
Name
Keystone Jack
TYPE
FTP shieled
Category
CAT7 / CAT6A /CAT6
Material
ZINC ALLOY
Spring
Phosphor Bronze & Gold-painted
Wiring mode:
T568A/B
IDC Terminal
22-26 AWG Cable
IDC Pin:
Phosphor Bronze & Tinned
RJ45 Insert pin
8P8C 8" Gold Plated
Color
Silver
Test
Channel test and Flukee test
Storage Temperature
-40°C to 70°C
Operating Temperature
-10°C to 60°C

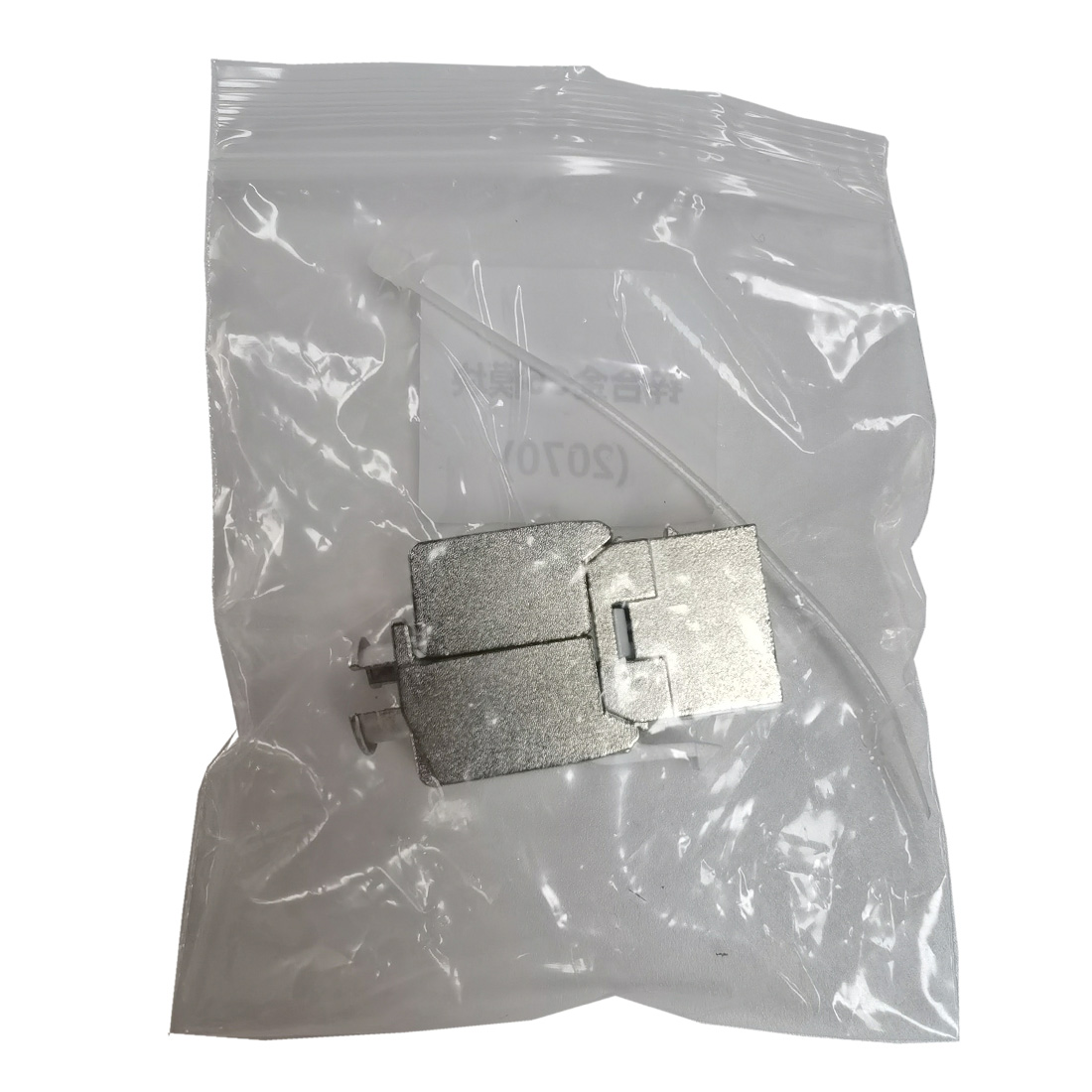

Packing
1pc/bag,1000PCS/26.5KG/61X41X22CM inner box 100PCS/20X19.5X11.5CM
Voltage Rating :
AC 125V
Current Rating :
1.5 AMPS
Insulation Resistance:
500MΩ Min
Withstand Voltage:
DC 1000V RMS 50-60Hz Min
Contact Resistange:
20MΩ Max
Insertion Force:
2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
Retention Strength:
70N between jack and plaug;60N between wire and IDC
Durability:
Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
Wire:
AWG 24-26
Housing:
Zinc-Alloy
IDC Hosing:
PC(UL94V-0)
Spring Wire:
T=0.35mm phosphor bronze alloy selective gold
0.45 dia phosphor bronze gold plating over nickel
IDC Contact :
Phosphor bronze;Nickel plating
Shielding:
T=0.25mm copper alloy with tin plated gold
Plating :
3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
Temperature:
-10°c TO 60°c
Humidity:
10-90%
Certifications
Company Profile
Why Choose Us

Shenzhen Hosell home . dedicate to produce and supply the high end quality Fiber optic products .
Including: Fiber Optic Cable,Patch cord and pigtail, Fiber optic connector, PLC splitter, Fiber optic terminal box, CWDM / DWDM, adapter and attenuator.

Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry. We are located in Shenzhen China with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

Our products are well exported to clients in such countries and regions as Mexico, Brazil, Spain, United States, Canada, Germany, South Africa, Philippines and Vietnam.

We also accept OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.

We have our own factory for 5 years ,we will offer you cost-effective parts,on time delivery date and accommodating service .

Delivery day: 7-15days Payment: T/T,L/C,Western Union or moneygram,Cash We will be honest to provide you with good after-sales service, we will provide you with all the products you want! welcome to consult!
Customer Review



FAQ
Q1: Is it possible to customize our brand information on the cable?
A: Yes, we can print your brand name on the cable jacket and 3KM total cable length is requested.

Q2: Can you pass FLUKE test?
A: Yes, all HOSELL networking cable can pass Fluke channel, component and permanent link test per customers' request.

Q3: What is your MOQ of your products?
A: We only have MOQ for some special jacket color, we request 3km as the total length of the bulk cable, you may consider stock the bulk cable with us for your urgent order production.

Q4: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under 50 US dollars.

Q5: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag and carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even can open the new tooling for your specific project.
